Python错误集锦：ctypes调用dll中函数时提示ValueError: Procedure probably called with too many arguments (8 bytes in excess)

原文链接：http://www.juzicode.com/python-error-ctypes-valueerror-procedure-probably-called-with-too-many-arguments/

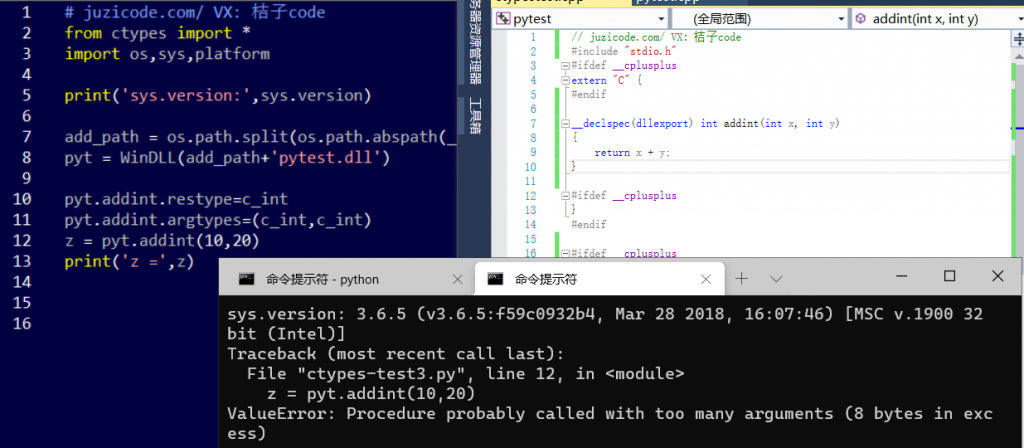

错误提示：

加载完dll，调用dll中函数时提示ValueError: Procedure probably called with too many arguments (8 bytes in excess)。

C代码，编译成32bit dll文件：

// juzicode.com/ VX: 桔子code
#include "stdio.h"
#ifdef __cplusplus
extern "C" {
#endif

__declspec(dllexport) int addint(int x, int y)
{
	return x + y;
}

#ifdef __cplusplus
}
#endif

Python代码：

# juzicode.com/ VX: 桔子code
from ctypes import *
import os,sys,platform

print('sys.version:',sys.version)

add_path = os.path.split(os.path.abspath(__file__))[0]+'\\'
pyt = WinDLL(add_path+'pytest.dll')

pyt.addint.restype=c_int
pyt.addint.argtypes=(c_int,c_int)
z = pyt.addint(10,20)
print('z =',z)

==========运行结果：
sys.version: 3.6.5 (v3.6.5:f59c0932b4, Mar 28 2018, 16:07:46) [MSC v.1900 32 bit (Intel)]
 Traceback (most recent call last):
   File "ctypes-test3.py", line 12, in
     z = pyt.addint(10,20)
 ValueError: Procedure probably called with too many arguments (8 bytes in excess)





错误原因：

1、C代码中默认是__cdecl调用约定，但是在Python中用的是WinDLL方式加载dll文件，所以导致出错。



解决方法：

1、C代码中的约定方式必须要和Python加载DLL的方式一致,pyt = WinDLL(add_path+’pytest.dll’)改为pyt = CDLL(add_path+’pytest.dll’)：

# juzicode.com/ VX: 桔子code
from ctypes import *
import os,sys,platform

print('sys.version:',sys.version)

add_path = os.path.split(os.path.abspath(__file__))[0]+'\\'
#pyt = WinDLL(add_path+'pytest.dll')
pyt = CDLL(add_path+'pytest.dll')  ###改为CDLL

pyt.addint.restype=c_int
pyt.addint.argtypes=(c_int,c_int)
z = pyt.addint(10,20)
print('z =',z)

==========运行结果：
sys.version: 3.6.5 (v3.6.5:f59c0932b4, Mar 28 2018, 16:07:46) [MSC v.1900 32 bit (Intel)]
z = 30

注：上述错误多见于32bit Python加载32bit DLL文件时，测试过64bit Python3.6和3.8用WinDLL加载64bit dll模块并不会报错，但是最好按照ctypes约定的方式加载DLL文件。

# juzicode.com/ VX: 桔子code
from ctypes import *
import os,sys,platform

print('sys.version:',sys.version)

add_path = os.path.split(os.path.abspath(__file__))[0]+'\\'
pyt = WinDLL(add_path+'pytest.dll')
#pyt = CDLL(add_path+'pytest.dll')

pyt.addint.restype=c_int
pyt.addint.argtypes=(c_int,c_int)
z = pyt.addint(10,20)
print('z =',z)

sys.version: 3.6.5 (v3.6.5:f59c0932b4, Mar 28 2018, 17:00:18) [MSC v.1900 64 bit (AMD64)]
 z = 30
